AIRHED CINE
Precision Performance
Fluid-action tilt video heads - two versions Arca Swiss or Standard Video plate
LEGENDS RANGE
The AirHed Cine is 3 Legged Thing's first dedicated video head. Precision milled from aerospace-grade magnesium alloy, and featuring a distinctive spiderweb design, the AirHed Cine has an adjustable, fluid-action tilt mechanism that offers smooth movement and can be controlled directly, or with the included panning arm.
Dual Solutions
With two options for clamp and plate, the AirHed Cine offers solutions for both videographers and photographers. Choose between:
The standard video clamp and plate, which has 3/8"-16 and 1/4"-20 mount options, with sliding locator pin.
or,
The Arca-Swiss style clamp and plate, also with 3/8"-16 and 1/4"-20 mount options, but which can also accommodate long lenses that have an in-built Arca shoe.
Perfectly Balanced
The Cine is designed to perfectly centre the weight of your gear, insuring beautifully balanced, precision motion and wildlife tracking.
Weighs less than breakfast at Tiffany's...
At less than 580g (excluding plate and arm) the AirHed Cine is perfect choice for travel, or for when you don't want to carry a lot of gear.
Crafted to Perfection
The AirHed Cine is precision engineered to the highest standards, with sleek lines and smooth mechanics. With mounting points for accessories, and left or right hand options for the arm mount, the Cine packs a lot of features in a very compact space.
Built For Travel
The AirHed Cine is built to enable travel and exploration. Powerful, compact and light, the Cine is the perfect companion for mobile imaging and videography,
Video & Wildlife
With two options for clamp and plate, the Cine provides solutions for both standard video, and Arca-Swiss compatibility.
Fluid Motion
The AirHed Cine has a fluid-motion, spring-balanced tilt action, and ultra-smooth panning, for precision cinematography and tracking.

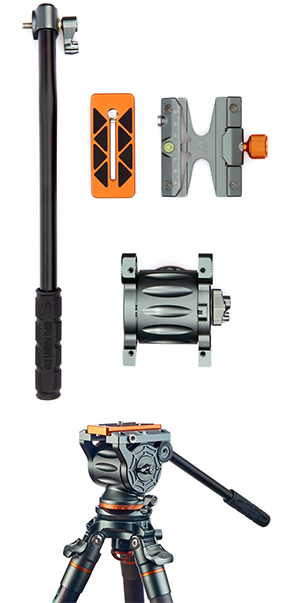

Detachable Arm
The panning-arm can be removed, or moved between left and right hand, giving maximum versatility for all users.
Precision Engineered
The AirHed Cine is precision milled from aerospace-grade magnesium and aluminium alloys, providing a beautiful finish and smooth operation.
165˚ Range of Tilt
The AirHed Cine has an astonishing 165˚ field of movement, with 90˚ down and 75˚ up.
SPECIFICATIONS
Below is a list of specifications for the two different AirHed Cine versions.
AIRHED CINE-A
(ARCA-SWISS)
Range of Tilt 165˚ (90˚ down, 75˚ up)
Panning Range 361˚
AirHed Height 91 mm / 3.58 "
AirHed Width 104 mm / 4.09 "
AirHed Length 87 mm / 3.42 "
AirHed Weight 569 g / 1.25 lb
Release Plate Width 38 mm / 1.5 "
Release Plate Length 90 mm / 3.54 "
Release Plate Weight 61 g / 0.13 lb
Panning Arm Width 37 mm / 1.46 "
Panning Arm Length 333 mm / 13.11 "
Panning Arm Weight 107 g / 0.24 lb
Kit Weight 737 g / 1.62 lb
Controls: Plate Release, Tilt Friction, Panning Lock
AIRHED CINE-S
(STANDARD VIDEO)
Range of Tilt 165˚ (90˚ down, 75˚ up)
Panning Range 361˚
AirHed Height 90 mm / 3.54 "
AirHed Width 103 mm / 4.05 "
AirHed Length 87 mm / 3.42 "
AirHed Weight 556 g / 1.23 lb
Release Plate Width 47 mm / 1.85 "
Release Plate Length 119 mm / 4.68 "
Release Plate Weight 89 g / 0.2 lb
Panning Arm Width 37 mm / 1.46 "
Panning Arm Length 333 mm / 13.11 "
Panning Arm Weight 107 g / 0.24 lb
Kit Weight 752 g / 1.66 lb
Controls: Plate Release, Tilt Friction, Panning Lock
